Planar Subdivisions

CvSubdiv2D

class CvSubdiv2D

Planar subdivision.

edges

A CvSet of CvSubdiv2DEdge

Planar subdivision is the subdivision of a plane into a set of non-overlapped regions (facets) that cover the whole plane. The above structure describes a subdivision built on a 2d point set, where the points are linked together and form a planar graph, which, together with a few edges connecting the exterior subdivision points (namely, convex hull points) with infinity, subdivides a plane into facets by its edges.

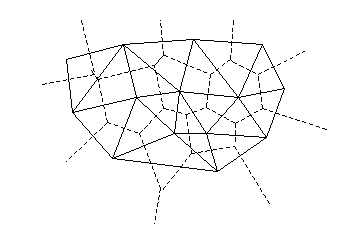

For every subdivision there exists a dual subdivision in which facets and points (subdivision vertices) swap their roles, that is, a facet is treated as a vertex (called a virtual point below) of the dual subdivision and the original subdivision vertices become facets. On the picture below original subdivision is marked with solid lines and dual subdivision with dotted lines.

OpenCV subdivides a plane into triangles using Delaunay’s algorithm. Subdivision is built iteratively starting from a dummy triangle that includes all the subdivision points for sure. In this case the dual subdivision is a Voronoi diagram of the input 2d point set. The subdivisions can be used for the 3d piece-wise transformation of a plane, morphing, fast location of points on the plane, building special graphs (such as NNG,RNG) and so forth.

CvSubdiv2DPoint

class CvSubdiv2DPoint

Point of original or dual subdivision.

first

A connected CvSubdiv2DEdge

pt

Position, as a CvPoint2D32f

CalcSubdivVoronoi2D

CalcSubdivVoronoi2D(subdiv) → None

Calculates the coordinates of Voronoi diagram cells.

Parameter:subdiv (CvSubdiv2D) – Delaunay subdivision, in which all the points are already added

The function calculates the coordinates of virtual points. All virtual points corresponding to some vertex of the original subdivision form (when connected together) a boundary of the Voronoi cell at that point.

ClearSubdivVoronoi2D

ClearSubdivVoronoi2D(subdiv) → None

Removes all virtual points.

Parameter:subdiv (CvSubdiv2D) – Delaunay subdivision

The function removes all of the virtual points. It is called internally in CalcSubdivVoronoi2D if the subdivision was modified after previous call to the function.

CreateSubdivDelaunay2D

CreateSubdivDelaunay2D(rect, storage) → delaunay_triangulation

Creates an empty Delaunay triangulation.

Parameters:

• rect (CvRect) – Rectangle that includes all of the 2d points that are to be added to the subdivision
• storage (CvMemStorage) – Container for subdivision

The function creates an empty Delaunay subdivision, where 2d points can be added using the function SubdivDelaunay2DInsert . All of the points to be added must be within the specified rectangle, otherwise a runtime error will be raised.

Note that the triangulation is a single large triangle that covers the given rectangle. Hence the three vertices of this triangle are outside the rectangle rect .

FindNearestPoint2D

FindNearestPoint2D(subdiv, pt) → point

Finds the closest subdivision vertex to the given point.

Parameters:

• subdiv (CvSubdiv2D) – Delaunay or another subdivision
• pt (CvPoint2D32f) – Input point

The function is another function that locates the input point within the subdivision. It finds the subdivision vertex that is the closest to the input point. It is not necessarily one of vertices of the facet containing the input point, though the facet (located using Subdiv2DLocate ) is used as a starting point. The function returns a pointer to the found subdivision vertex.

Subdiv2DEdgeDst

Subdiv2DEdgeDst(edge) → point

Returns the edge destination.

Parameter:edge (CvSubdiv2DEdge) – Subdivision edge (not a quad-edge)

The function returns the edge destination. The returned pointer may be NULL if the edge is from dual subdivision and the virtual point coordinates are not calculated yet. The virtual points can be calculated using the function CalcSubdivVoronoi2D .

Subdiv2DGetEdge

Subdiv2DGetEdge(edge, type) → CvSubdiv2DEdge

Returns one of the edges related to the given edge.

Parameters:

• edge (CvSubdiv2DEdge) – Subdivision edge (not a quad-edge)
• type

  CvNextEdgeType

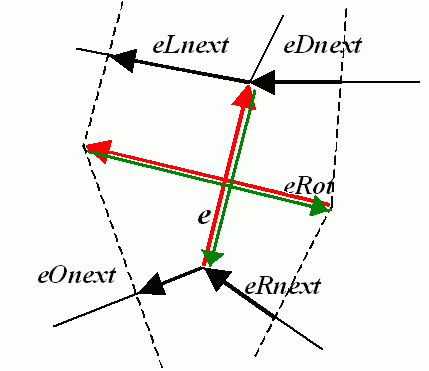

  • CV_NEXT_AROUND_ORG next around the edge origin ( eOnext on the picture below if e is the input edge)
  • CV_NEXT_AROUND_DST next around the edge vertex ( eDnext )
  • CV_PREV_AROUND_ORG previous around the edge origin (reversed eRnext )
  • CV_PREV_AROUND_DST previous around the edge destination (reversed eLnext )
  • CV_NEXT_AROUND_LEFT next around the left facet ( eLnext )
  • CV_NEXT_AROUND_RIGHT next around the right facet ( eRnext )
  • CV_PREV_AROUND_LEFT previous around the left facet (reversed eOnext )
  • CV_PREV_AROUND_RIGHT previous around the right facet (reversed eDnext )
  – Specifies which of the related edges to return, one of the following:

The function returns one of the edges related to the input edge.

Subdiv2DNextEdge

Subdiv2DNextEdge(edge) → CvSubdiv2DEdge

Returns next edge around the edge origin

Parameter:edge (CvSubdiv2DEdge) – Subdivision edge (not a quad-edge)

The function returns the next edge around the edge origin: eOnext on the picture above if e is the input edge)

Subdiv2DLocate

Subdiv2DLocate(subdiv, pt) -> (loc, where)

Returns the location of a point within a Delaunay triangulation.

Parameters:

• subdiv (CvSubdiv2D) – Delaunay or another subdivision
• pt (CvPoint2D32f) – The point to locate
• loc (int) – The location of the point within the triangulation
• where (CvSubdiv2DEdge, CvSubdiv2DPoint) – The edge or vertex. See below.

The function locates the input point within the subdivision. There are 5 cases:

• The point falls into some facet. loc is CV_PTLOC_INSIDE and where is one of edges of the facet.
• The point falls onto the edge. loc is CV_PTLOC_ON_EDGE and where is the edge.
• The point coincides with one of the subdivision vertices. loc is CV_PTLOC_VERTEX and where is the vertex.
• The point is outside the subdivsion reference rectangle. loc is CV_PTLOC_OUTSIDE_RECT and where is None.
• One of input arguments is invalid. The function raises an exception.

Subdiv2DRotateEdge

Subdiv2DRotateEdge(edge, rotate) → CvSubdiv2DEdge

Returns another edge of the same quad-edge.

Parameters:

• edge (CvSubdiv2DEdge) – Subdivision edge (not a quad-edge)
• rotate (int) –

  Specifies which of the edges of the same quad-edge as the input one to return, one of the following:

  • 0 the input edge ( e on the picture below if e is the input edge)
  • 1 the rotated edge ( eRot )
  • 2 the reversed edge (reversed e (in green))
  • 3 the reversed rotated edge (reversed eRot (in green))

The function returns one of the edges of the same quad-edge as the input edge.

SubdivDelaunay2DInsert

SubdivDelaunay2DInsert(subdiv, pt) → point

Inserts a single point into a Delaunay triangulation.

Parameters:

• subdiv (CvSubdiv2D) – Delaunay subdivision created by the function CreateSubdivDelaunay2D
• pt (CvPoint2D32f) – Inserted point

The function inserts a single point into a subdivision and modifies the subdivision topology appropriately. If a point with the same coordinates exists already, no new point is added. The function returns a pointer to the allocated point. No virtual point coordinates are calculated at this stage.
