Operations on Arrays

AbsDiff

Comments from the Wiki

AbsDiff(src1, src2, dst) → None

Calculates absolute difference between two arrays.

Parameters:
  • src1 (CvArr) – The first source array
  • src2 (CvArr) – The second source array
  • dst (CvArr) – The destination array

The function calculates absolute difference between two arrays.

\texttt{dst} (i)_c = | \texttt{src1} (I)_c -  \texttt{src2} (I)_c|

All the arrays must have the same data type and the same size (or ROI size).

AbsDiffS

Comments from the Wiki

AbsDiffS(src, value, dst) → None

Calculates absolute difference between an array and a scalar.

Parameters:
  • src (CvArr) – The source array
  • dst (CvArr) – The destination array
  • value (CvScalar) – The scalar

The function calculates absolute difference between an array and a scalar.

\texttt{dst} (i)_c = | \texttt{src} (I)_c -  \texttt{value} _c|

All the arrays must have the same data type and the same size (or ROI size).

Add

Comments from the Wiki

Add(src1, src2, dst, mask=NULL) → None

Computes the per-element sum of two arrays.

Parameters:
  • src1 (CvArr) – The first source array
  • src2 (CvArr) – The second source array
  • dst (CvArr) – The destination array
  • mask (CvArr) – Operation mask, 8-bit single channel array; specifies elements of the destination array to be changed

The function adds one array to another:

dst(I)=src1(I)+src2(I) if mask(I)!=0

All the arrays must have the same type, except the mask, and the same size (or ROI size). For types that have limited range this operation is saturating.

AddS

Comments from the Wiki

AddS(src, value, dst, mask=NULL) → None

Computes the sum of an array and a scalar.

Parameters:
  • src (CvArr) – The source array
  • value (CvScalar) – Added scalar
  • dst (CvArr) – The destination array
  • mask (CvArr) – Operation mask, 8-bit single channel array; specifies elements of the destination array to be changed

The function adds a scalar value to every element in the source array src1 and stores the result in dst . For types that have limited range this operation is saturating.

dst(I)=src(I)+value if mask(I)!=0

All the arrays must have the same type, except the mask, and the same size (or ROI size).

AddWeighted

Comments from the Wiki

AddWeighted(src1, alpha, src2, beta, gamma, dst) → None

Computes the weighted sum of two arrays.

Parameters:
  • src1 (CvArr) – The first source array
  • alpha (float) – Weight for the first array elements
  • src2 (CvArr) – The second source array
  • beta (float) – Weight for the second array elements
  • dst (CvArr) – The destination array
  • gamma (float) – Scalar, added to each sum

The function calculates the weighted sum of two arrays as follows:

dst(I)=src1(I)*alpha+src2(I)*beta+gamma

All the arrays must have the same type and the same size (or ROI size). For types that have limited range this operation is saturating.

And

Comments from the Wiki

And(src1, src2, dst, mask=NULL) → None

Calculates per-element bit-wise conjunction of two arrays.

Parameters:
  • src1 (CvArr) – The first source array
  • src2 (CvArr) – The second source array
  • dst (CvArr) – The destination array
  • mask (CvArr) – Operation mask, 8-bit single channel array; specifies elements of the destination array to be changed

The function calculates per-element bit-wise logical conjunction of two arrays:

dst(I)=src1(I)&src2(I) if mask(I)!=0

In the case of floating-point arrays their bit representations are used for the operation. All the arrays must have the same type, except the mask, and the same size.

AndS

Comments from the Wiki

AndS(src, value, dst, mask=NULL) → None

Calculates per-element bit-wise conjunction of an array and a scalar.

Parameters:
  • src (CvArr) – The source array
  • value (CvScalar) – Scalar to use in the operation
  • dst (CvArr) – The destination array
  • mask (CvArr) – Operation mask, 8-bit single channel array; specifies elements of the destination array to be changed

The function calculates per-element bit-wise conjunction of an array and a scalar:

dst(I)=src(I)&value if mask(I)!=0

Prior to the actual operation, the scalar is converted to the same type as that of the array(s). In the case of floating-point arrays their bit representations are used for the operation. All the arrays must have the same type, except the mask, and the same size.

Avg

Comments from the Wiki

Avg(arr, mask=NULL) → CvScalar

Calculates average (mean) of array elements.

Parameters:
  • arr (CvArr) – The array
  • mask (CvArr) – The optional operation mask

The function calculates the average value M of array elements, independently for each channel:

\begin{array}{l} N =  \sum _I ( \texttt{mask} (I)  \ne 0) \\ M_c =  \frac{\sum_{I, \, \texttt{mask}(I) \ne 0} \texttt{arr} (I)_c}{N} \end{array}

If the array is IplImage and COI is set, the function processes the selected channel only and stores the average to the first scalar component S_0 .

AvgSdv

Comments from the Wiki

AvgSdv(arr, mask=NULL)-> (mean, stdDev)

Calculates average (mean) of array elements.

Parameters:
  • arr (CvArr) – The array
  • mask (CvArr) – The optional operation mask
  • mean (CvScalar) – Mean value, a CvScalar
  • stdDev (CvScalar) – Standard deviation, a CvScalar

The function calculates the average value and standard deviation of array elements, independently for each channel:

\begin{array}{l} N =  \sum _I ( \texttt{mask} (I)  \ne 0) \\ mean_c =  \frac{1}{N} \, \sum _{ I,  \, \texttt{mask} (I)  \ne 0}  \texttt{arr} (I)_c \\ stdDev_c =  \sqrt{\frac{1}{N} \, \sum_{ I, \, \texttt{mask}(I) \ne 0} ( \texttt{arr} (I)_c - mean_c)^2} \end{array}

If the array is IplImage and COI is set, the function processes the selected channel only and stores the average and standard deviation to the first components of the output scalars ( mean_0 and stdDev_0 ).

CalcCovarMatrix

Comments from the Wiki

CalcCovarMatrix(vects, covMat, avg, flags) → None

Calculates covariance matrix of a set of vectors.

Parameters:
  • vects (cvarr_count) – The input vectors, all of which must have the same type and the same size. The vectors do not have to be 1D, they can be 2D (e.g., images) and so forth
  • covMat (CvArr) – The output covariance matrix that should be floating-point and square
  • avg (CvArr) – The input or output (depending on the flags) array - the mean (average) vector of the input vectors
  • flags (int) –

    The operation flags, a combination of the following values

    • CV_COVAR_SCRAMBLED The output covariance matrix is calculated as:

      \texttt{scale}  * [  \texttt{vects}  [0]-  \texttt{avg}  , \texttt{vects}  [1]-  \texttt{avg}  ,...]^T  \cdot  [ \texttt{vects}  [0]- \texttt{avg}  , \texttt{vects}  [1]- \texttt{avg}  ,...]

      , that is, the covariance matrix is \texttt{count} \times \texttt{count} . Such an unusual covariance matrix is used for fast PCA of a set of very large vectors (see, for example, the EigenFaces technique for face recognition). Eigenvalues of this “scrambled” matrix will match the eigenvalues of the true covariance matrix and the “true” eigenvectors can be easily calculated from the eigenvectors of the “scrambled” covariance matrix.

    • CV_COVAR_NORMAL The output covariance matrix is calculated as:

      \texttt{scale}  * [  \texttt{vects}  [0]-  \texttt{avg}  , \texttt{vects}  [1]-  \texttt{avg}  ,...]  \cdot  [ \texttt{vects}  [0]- \texttt{avg}  , \texttt{vects}  [1]- \texttt{avg}  ,...]^T

      , that is, covMat will be a covariance matrix with the same linear size as the total number of elements in each input vector. One and only one of CV_COVAR_SCRAMBLED and CV_COVAR_NORMAL must be specified

    • CV_COVAR_USE_AVG If the flag is specified, the function does not calculate avg from the input vectors, but, instead, uses the passed avg vector. This is useful if avg has been already calculated somehow, or if the covariance matrix is calculated by parts - in this case, avg is not a mean vector of the input sub-set of vectors, but rather the mean vector of the whole set.
    • CV_COVAR_SCALE If the flag is specified, the covariance matrix is scaled. In the “normal” mode scale is ‘1./count’; in the “scrambled” mode scale is the reciprocal of the total number of elements in each input vector. By default (if the flag is not specified) the covariance matrix is not scaled (‘scale=1’).
    • CV_COVAR_ROWS Means that all the input vectors are stored as rows of a single matrix, vects[0] . count is ignored in this case, and avg should be a single-row vector of an appropriate size.
    • CV_COVAR_COLS Means that all the input vectors are stored as columns of a single matrix, vects[0] . count is ignored in this case, and avg should be a single-column vector of an appropriate size.

The function calculates the covariance matrix and, optionally, the mean vector of the set of input vectors. The function can be used for PCA, for comparing vectors using Mahalanobis distance and so forth.

CartToPolar

Comments from the Wiki

CartToPolar(x, y, magnitude, angle=NULL, angleInDegrees=0) → None

Calculates the magnitude and/or angle of 2d vectors.

Parameters:
  • x (CvArr) – The array of x-coordinates
  • y (CvArr) – The array of y-coordinates
  • magnitude (CvArr) – The destination array of magnitudes, may be set to NULL if it is not needed
  • angle (CvArr) – The destination array of angles, may be set to NULL if it is not needed. The angles are measured in radians (0 to 2 \pi ) or in degrees (0 to 360 degrees).
  • angleInDegrees (int) – The flag indicating whether the angles are measured in radians, which is default mode, or in degrees

The function calculates either the magnitude, angle, or both of every 2d vector (x(I),y(I)):

magnitude(I)=sqrt(x(I)^2^+y(I)^2^ ),
angle(I)=atan(y(I)/x(I) )

The angles are calculated with 0.1 degree accuracy. For the (0,0) point, the angle is set to 0.

Cbrt

Comments from the Wiki

Cbrt(value) → float

Calculates the cubic root

Parameters:
  • value (float) – The input floating-point value

The function calculates the cubic root of the argument, and normally it is faster than pow(value,1./3) . In addition, negative arguments are handled properly. Special values ( \pm \infty , NaN) are not handled.

ClearND

Comments from the Wiki

ClearND(arr, idx) → None

Clears a specific array element.

Parameters:
  • arr (CvArr) – Input array
  • idx (sequence of int) – Array of the element indices

The function ClearND clears (sets to zero) a specific element of a dense array or deletes the element of a sparse array. If the sparse array element does not exists, the function does nothing.

CloneImage

Comments from the Wiki

CloneImage(image) → copy

Makes a full copy of an image, including the header, data, and ROI.

Parameters:
  • image (IplImage) – The original image

The returned IplImage* points to the image copy.

CloneMat

Comments from the Wiki

CloneMat(mat) → copy

Creates a full matrix copy.

Parameters:
  • mat (CvMat) – Matrix to be copied

Creates a full copy of a matrix and returns a pointer to the copy.

CloneMatND

Comments from the Wiki

CloneMatND(mat) → copy

Creates full copy of a multi-dimensional array and returns a pointer to the copy.

Parameters:

Cmp

Comments from the Wiki

Cmp(src1, src2, dst, cmpOp) → None

Performs per-element comparison of two arrays.

Parameters:
  • src1 (CvArr) – The first source array
  • src2 (CvArr) – The second source array. Both source arrays must have a single channel.
  • dst (CvArr) – The destination array, must have 8u or 8s type
  • cmpOp (int) –

    The flag specifying the relation between the elements to be checked

    • CV_CMP_EQ src1(I) “equal to” value
    • CV_CMP_GT src1(I) “greater than” value
    • CV_CMP_GE src1(I) “greater or equal” value
    • CV_CMP_LT src1(I) “less than” value
    • CV_CMP_LE src1(I) “less or equal” value
    • CV_CMP_NE src1(I) “not equal” value

The function compares the corresponding elements of two arrays and fills the destination mask array:

dst(I)=src1(I) op src2(I),

dst(I) is set to 0xff (all 1 -bits) if the specific relation between the elements is true and 0 otherwise. All the arrays must have the same type, except the destination, and the same size (or ROI size)

CmpS

Comments from the Wiki

CmpS(src, value, dst, cmpOp) → None

Performs per-element comparison of an array and a scalar.

Parameters:
  • src (CvArr) – The source array, must have a single channel
  • value (float) – The scalar value to compare each array element with
  • dst (CvArr) – The destination array, must have 8u or 8s type
  • cmpOp (int) –

    The flag specifying the relation between the elements to be checked

    • CV_CMP_EQ src1(I) “equal to” value
    • CV_CMP_GT src1(I) “greater than” value
    • CV_CMP_GE src1(I) “greater or equal” value
    • CV_CMP_LT src1(I) “less than” value
    • CV_CMP_LE src1(I) “less or equal” value
    • CV_CMP_NE src1(I) “not equal” value

The function compares the corresponding elements of an array and a scalar and fills the destination mask array:

dst(I)=src(I) op scalar

where op is =,\; >,\; \ge,\; <,\; \le\; or\; \ne .

dst(I) is set to 0xff (all 1 -bits) if the specific relation between the elements is true and 0 otherwise. All the arrays must have the same size (or ROI size).

Convert

Comments from the Wiki

Convert(src, dst) → None

Converts one array to another.

Parameters:
  • src (CvArr) – Source array
  • dst (CvArr) – Destination array

The type of conversion is done with rounding and saturation, that is if the result of scaling + conversion can not be represented exactly by a value of the destination array element type, it is set to the nearest representable value on the real axis.

All the channels of multi-channel arrays are processed independently.

ConvertScale

Comments from the Wiki

ConvertScale(src, dst, scale=1.0, shift=0.0) → None

Converts one array to another with optional linear transformation.

Parameters:
  • src (CvArr) – Source array
  • dst (CvArr) – Destination array
  • scale (float) – Scale factor
  • shift (float) – Value added to the scaled source array elements

The function has several different purposes, and thus has several different names. It copies one array to another with optional scaling, which is performed first, and/or optional type conversion, performed after:

\texttt{dst} (I) =  \texttt{scale} \texttt{src} (I) + ( \texttt{shift} _0, \texttt{shift} _1,...)

All the channels of multi-channel arrays are processed independently.

The type of conversion is done with rounding and saturation, that is if the result of scaling + conversion can not be represented exactly by a value of the destination array element type, it is set to the nearest representable value on the real axis.

In the case of scale=1, shift=0 no prescaling is done. This is a specially optimized case and it has the appropriate Convert name. If source and destination array types have equal types, this is also a special case that can be used to scale and shift a matrix or an image and that is caled Scale .

ConvertScaleAbs

Comments from the Wiki

ConvertScaleAbs(src, dst, scale=1.0, shift=0.0) → None

Converts input array elements to another 8-bit unsigned integer with optional linear transformation.

Parameters:
  • src (CvArr) – Source array
  • dst (CvArr) – Destination array (should have 8u depth)
  • scale (float) – ScaleAbs factor
  • shift (float) – Value added to the scaled source array elements

The function is similar to ConvertScale , but it stores absolute values of the conversion results:

\texttt{dst} (I) = | \texttt{scale} \texttt{src} (I) + ( \texttt{shift} _0, \texttt{shift} _1,...)|

The function supports only destination arrays of 8u (8-bit unsigned integers) type; for other types the function can be emulated by a combination of ConvertScale and Abs functions.

CvtScaleAbs

Comments from the Wiki

CvtScaleAbs(src, dst, scale=1.0, shift=0.0) → None

Converts input array elements to another 8-bit unsigned integer with optional linear transformation.

Parameters:
  • src – Source array
  • dst – Destination array (should have 8u depth)
  • scale – ScaleAbs factor
  • shift – Value added to the scaled source array elements

The function is similar to ConvertScale , but it stores absolute values of the conversion results:

\texttt{dst} (I) = | \texttt{scale} \texttt{src} (I) + ( \texttt{shift} _0, \texttt{shift} _1,...)|

The function supports only destination arrays of 8u (8-bit unsigned integers) type; for other types the function can be emulated by a combination of ConvertScale and Abs functions.

Copy

Comments from the Wiki

Copy(src, dst, mask=NULL) → None

Copies one array to another.

Parameters:
  • src (CvArr) – The source array
  • dst (CvArr) – The destination array
  • mask (CvArr) – Operation mask, 8-bit single channel array; specifies elements of the destination array to be changed

The function copies selected elements from an input array to an output array:

\texttt{dst} (I)= \texttt{src} (I)  \quad \text{if} \quad \texttt{mask} (I)  \ne 0.

If any of the passed arrays is of IplImage type, then its ROI and COI fields are used. Both arrays must have the same type, the same number of dimensions, and the same size. The function can also copy sparse arrays (mask is not supported in this case).

CountNonZero

Comments from the Wiki

CountNonZero(arr) → int

Counts non-zero array elements.

Parameters:
  • arr (CvArr) – The array must be a single-channel array or a multi-channel image with COI set

The function returns the number of non-zero elements in arr:

\sum _I ( \texttt{arr} (I)  \ne 0)

In the case of IplImage both ROI and COI are supported.

CreateData

Comments from the Wiki

CreateData(arr) → None

Allocates array data

Parameters:
  • arr (CvArr) – Array header

The function allocates image, matrix or multi-dimensional array data. Note that in the case of matrix types OpenCV allocation functions are used and in the case of IplImage they are used unless CV_TURN_ON_IPL_COMPATIBILITY was called. In the latter case IPL functions are used to allocate the data.

CreateImage

Comments from the Wiki

CreateImage(size, depth, channels) → image

Creates an image header and allocates the image data.

Parameters:
  • size (CvSize) – Image width and height
  • depth (int) – Bit depth of image elements. See IplImage for valid depths.
  • channels (int) – Number of channels per pixel. See IplImage for details. This function only creates images with interleaved channels.

CreateImageHeader

Comments from the Wiki

CreateImageHeader(size, depth, channels) → image

Creates an image header but does not allocate the image data.

Parameters:
  • size (CvSize) – Image width and height
  • depth (int) – Image depth (see CreateImage )
  • channels (int) – Number of channels (see CreateImage )

CreateMat

Comments from the Wiki

CreateMat(rows, cols, type) → mat

Creates a matrix header and allocates the matrix data.

Parameters:
  • rows (int) – Number of rows in the matrix
  • cols (int) – Number of columns in the matrix
  • type (int) – The type of the matrix elements in the form CV_<bit depth><S|U|F>C<number of channels> , where S=signed, U=unsigned, F=float. For example, CV _ 8UC1 means the elements are 8-bit unsigned and the there is 1 channel, and CV _ 32SC2 means the elements are 32-bit signed and there are 2 channels.

CreateMatHeader

Comments from the Wiki

CreateMatHeader(rows, cols, type) → mat

Creates a matrix header but does not allocate the matrix data.

Parameters:
  • rows (int) – Number of rows in the matrix
  • cols (int) – Number of columns in the matrix
  • type (int) – Type of the matrix elements, see CreateMat

The function allocates a new matrix header and returns a pointer to it. The matrix data can then be allocated using CreateData or set explicitly to user-allocated data via SetData .

CreateMatND

Comments from the Wiki

CreateMatND(dims, type) → None

Creates the header and allocates the data for a multi-dimensional dense array.

Parameters:
  • dims (sequence of int) – List or tuple of array dimensions, up to 32 in length.
  • type (int) – Type of array elements, see CreateMat .

This is a short form for:

CreateMatNDHeader

Comments from the Wiki

CreateMatNDHeader(dims, type) → None

Creates a new matrix header but does not allocate the matrix data.

Parameters:
  • dims (sequence of int) – List or tuple of array dimensions, up to 32 in length.
  • type (int) – Type of array elements, see CreateMat

The function allocates a header for a multi-dimensional dense array. The array data can further be allocated using CreateData or set explicitly to user-allocated data via SetData .

CrossProduct

Comments from the Wiki

CrossProduct(src1, src2, dst) → None

Calculates the cross product of two 3D vectors.

Parameters:
  • src1 (CvArr) – The first source vector
  • src2 (CvArr) – The second source vector
  • dst (CvArr) – The destination vector

The function calculates the cross product of two 3D vectors:

\texttt{dst} =  \texttt{src1} \times \texttt{src2}

or:

\begin{array}{l} \texttt{dst} _1 =  \texttt{src1} _2  \texttt{src2} _3 -  \texttt{src1} _3  \texttt{src2} _2 \\ \texttt{dst} _2 =  \texttt{src1} _3  \texttt{src2} _1 -  \texttt{src1} _1  \texttt{src2} _3 \\ \texttt{dst} _3 =  \texttt{src1} _1  \texttt{src2} _2 -  \texttt{src1} _2  \texttt{src2} _1 \end{array}

CvtPixToPlane

Synonym for Split .

DCT

Comments from the Wiki

DCT(src, dst, flags) → None

Performs a forward or inverse Discrete Cosine transform of a 1D or 2D floating-point array.

Parameters:
  • src (CvArr) – Source array, real 1D or 2D array
  • dst (CvArr) – Destination array of the same size and same type as the source
  • flags (int) –

    Transformation flags, a combination of the following values

    • CV_DXT_FORWARD do a forward 1D or 2D transform.
    • CV_DXT_INVERSE do an inverse 1D or 2D transform.
    • CV_DXT_ROWS do a forward or inverse transform of every individual row of the input matrix. This flag allows user to transform multiple vectors simultaneously and can be used to decrease the overhead (which is sometimes several times larger than the processing itself), to do 3D and higher-dimensional transforms and so forth.

The function performs a forward or inverse transform of a 1D or 2D floating-point array:

Forward Cosine transform of 1D vector of N elements:

Y = C^{(N)}  \cdot X

where

C^{(N)}_{jk}= \sqrt{\alpha_j/N} \cos \left ( \frac{\pi(2k+1)j}{2N} \right )

and \alpha_0=1 , \alpha_j=2 for j > 0 .

Inverse Cosine transform of 1D vector of N elements:

X =  \left (C^{(N)} \right )^{-1}  \cdot Y =  \left (C^{(N)} \right )^T  \cdot Y

(since C^{(N)} is orthogonal matrix, C^{(N)} \cdot \left(C^{(N)}\right)^T = I )

Forward Cosine transform of 2D M \times N matrix:

Y = C^{(N)}  \cdot X  \cdot \left (C^{(N)} \right )^T

Inverse Cosine transform of 2D vector of M \times N elements:

X =  \left (C^{(N)} \right )^T  \cdot X  \cdot C^{(N)}

DFT

Comments from the Wiki

DFT(src, dst, flags, nonzeroRows=0) → None

Performs a forward or inverse Discrete Fourier transform of a 1D or 2D floating-point array.

Parameters:
  • src (CvArr) – Source array, real or complex
  • dst (CvArr) – Destination array of the same size and same type as the source
  • flags (int) –

    Transformation flags, a combination of the following values

    • CV_DXT_FORWARD do a forward 1D or 2D transform. The result is not scaled.
    • CV_DXT_INVERSE do an inverse 1D or 2D transform. The result is not scaled. CV_DXT_FORWARD and CV_DXT_INVERSE are mutually exclusive, of course.
    • CV_DXT_SCALE scale the result: divide it by the number of array elements. Usually, it is combined with CV_DXT_INVERSE , and one may use a shortcut CV_DXT_INV_SCALE .
    • CV_DXT_ROWS do a forward or inverse transform of every individual row of the input matrix. This flag allows the user to transform multiple vectors simultaneously and can be used to decrease the overhead (which is sometimes several times larger than the processing itself), to do 3D and higher-dimensional transforms and so forth.
    • CV_DXT_INVERSE_SCALE same as CV_DXT_INVERSE + CV_DXT_SCALE
  • nonzeroRows (int) – Number of nonzero rows in the source array (in the case of a forward 2d transform), or a number of rows of interest in the destination array (in the case of an inverse 2d transform). If the value is negative, zero, or greater than the total number of rows, it is ignored. The parameter can be used to speed up 2d convolution/correlation when computing via DFT. See the example below.

The function performs a forward or inverse transform of a 1D or 2D floating-point array:

Forward Fourier transform of 1D vector of N elements:

y = F^{(N)}  \cdot x, where F^{(N)}_{jk}=exp(-i  \cdot 2 \pi \cdot j  \cdot k/N)

,

i=sqrt(-1)

Inverse Fourier transform of 1D vector of N elements:

x'= (F^{(N)})^{-1}  \cdot y = conj(F^(N))  \cdot y
x = (1/N)  \cdot x

Forward Fourier transform of 2D vector of M \times N elements:

Y = F^{(M)}  \cdot X  \cdot F^{(N)}

Inverse Fourier transform of 2D vector of M \times N elements:

X'= conj(F^{(M)})  \cdot Y  \cdot conj(F^{(N)})
X = (1/(M  \cdot N))  \cdot X'

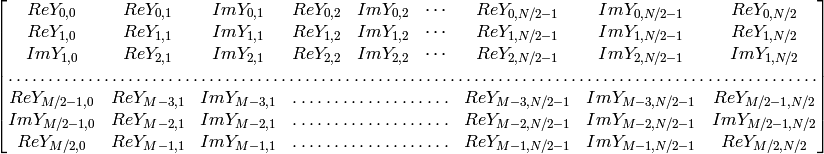

In the case of real (single-channel) data, the packed format, borrowed from IPL, is used to represent the result of a forward Fourier transform or input for an inverse Fourier transform:

\begin{bmatrix} Re Y_{0,0} & Re Y_{0,1} & Im Y_{0,1} & Re Y_{0,2} & Im Y_{0,2} &  \cdots & Re Y_{0,N/2-1} & Im Y_{0,N/2-1} & Re Y_{0,N/2}  \\ Re Y_{1,0} & Re Y_{1,1} & Im Y_{1,1} & Re Y_{1,2} & Im Y_{1,2} &  \cdots & Re Y_{1,N/2-1} & Im Y_{1,N/2-1} & Re Y_{1,N/2}  \\ Im Y_{1,0} & Re Y_{2,1} & Im Y_{2,1} & Re Y_{2,2} & Im Y_{2,2} &  \cdots & Re Y_{2,N/2-1} & Im Y_{2,N/2-1} & Im Y_{1,N/2}  \\ \hdotsfor{9} \\ Re Y_{M/2-1,0} &  Re Y_{M-3,1}  & Im Y_{M-3,1} &  \hdotsfor{3} & Re Y_{M-3,N/2-1} & Im Y_{M-3,N/2-1}& Re Y_{M/2-1,N/2}  \\ Im Y_{M/2-1,0} &  Re Y_{M-2,1}  & Im Y_{M-2,1} &  \hdotsfor{3} & Re Y_{M-2,N/2-1} & Im Y_{M-2,N/2-1}& Im Y_{M/2-1,N/2}  \\ Re Y_{M/2,0}  &  Re Y_{M-1,1} &  Im Y_{M-1,1} &  \hdotsfor{3} & Re Y_{M-1,N/2-1} & Im Y_{M-1,N/2-1}& Re Y_{M/2,N/2} \end{bmatrix}

Note: the last column is present if N is even, the last row is present if M is even. In the case of 1D real transform the result looks like the first row of the above matrix.

Here is the example of how to compute 2D convolution using DFT.

Det

Comments from the Wiki

Det(mat) → double

Returns the determinant of a matrix.

Parameters:
  • mat (CvArr) – The source matrix

The function returns the determinant of the square matrix mat . The direct method is used for small matrices and Gaussian elimination is used for larger matrices. For symmetric positive-determined matrices, it is also possible to run SVD with U = V = 0 and then calculate the determinant as a product of the diagonal elements of W .

Div

Comments from the Wiki

Div(src1, src2, dst, scale) → None

Performs per-element division of two arrays.

Parameters:
  • src1 (CvArr) – The first source array. If the pointer is NULL, the array is assumed to be all 1’s.
  • src2 (CvArr) – The second source array
  • dst (CvArr) – The destination array
  • scale (float) – Optional scale factor

The function divides one array by another:

\texttt{dst} (I)= \fork{\texttt{scale} \cdot \texttt{src1}(I)/\texttt{src2}(I)}{if \texttt{src1} is not \texttt{NULL}}{\texttt{scale}/\texttt{src2}(I)}{otherwise}

All the arrays must have the same type and the same size (or ROI size).

DotProduct

Comments from the Wiki

DotProduct(src1, src2) → double

Calculates the dot product of two arrays in Euclidian metrics.

Parameters:
  • src1 (CvArr) – The first source array
  • src2 (CvArr) – The second source array

The function calculates and returns the Euclidean dot product of two arrays.

src1  \bullet src2 =  \sum _I ( \texttt{src1} (I)  \texttt{src2} (I))

In the case of multiple channel arrays, the results for all channels are accumulated. In particular, cvDotProduct(a,a) where a is a complex vector, will return ||\texttt{a}||^2 . The function can process multi-dimensional arrays, row by row, layer by layer, and so on.

EigenVV

Comments from the Wiki

EigenVV(mat, evects, evals, eps, lowindex, highindex) → None

Computes eigenvalues and eigenvectors of a symmetric matrix.

Parameters:
  • mat (CvArr) – The input symmetric square matrix, modified during the processing
  • evects (CvArr) – The output matrix of eigenvectors, stored as subsequent rows
  • evals (CvArr) – The output vector of eigenvalues, stored in the descending order (order of eigenvalues and eigenvectors is syncronized, of course)
  • eps (float) – Accuracy of diagonalization. Typically, DBL_EPSILON (about 10^{-15} ) works well. THIS PARAMETER IS CURRENTLY IGNORED.
  • lowindex (int) – Optional index of largest eigenvalue/-vector to calculate. (See below.)
  • highindex (int) – Optional index of smallest eigenvalue/-vector to calculate. (See below.)

The function computes the eigenvalues and eigenvectors of matrix A :

mat*evects(i,:)' = evals(i)*evects(i,:)' (in MATLAB notation)

If either low- or highindex is supplied the other is required, too. Indexing is 0-based. Example: To calculate the largest eigenvector/-value set lowindex=highindex=0 . To calculate all the eigenvalues, leave lowindex=highindex=-1 . For legacy reasons this function always returns a square matrix the same size as the source matrix with eigenvectors and a vector the length of the source matrix with eigenvalues. The selected eigenvectors/-values are always in the first highindex - lowindex + 1 rows.

The contents of matrix A is destroyed by the function.

Currently the function is slower than SVD yet less accurate, so if A is known to be positively-defined (for example, it is a covariance matrix)it is recommended to use SVD to find eigenvalues and eigenvectors of A , especially if eigenvectors are not required.

Exp

Comments from the Wiki

Exp(src, dst) → None

Calculates the exponent of every array element.

Parameters:
  • src (CvArr) – The source array
  • dst (CvArr) – The destination array, it should have double type or the same type as the source

The function calculates the exponent of every element of the input array:

\texttt{dst} [I] = e^{ \texttt{src} (I)}

The maximum relative error is about 7 \times 10^{-6} . Currently, the function converts denormalized values to zeros on output.

FastArctan

Comments from the Wiki

FastArctan(y, x) → float

Calculates the angle of a 2D vector.

Parameters:
  • x (float) – x-coordinate of 2D vector
  • y (float) – y-coordinate of 2D vector

The function calculates the full-range angle of an input 2D vector. The angle is measured in degrees and varies from 0 degrees to 360 degrees. The accuracy is about 0.1 degrees.

Flip

Comments from the Wiki

Flip(src, dst=NULL, flipMode=0) → None

Flip a 2D array around vertical, horizontal or both axes.

Parameters:
  • src (CvArr) – Source array
  • dst (CvArr) – Destination array. If \texttt{dst} = \texttt{NULL} the flipping is done in place.
  • flipMode (int) – Specifies how to flip the array: 0 means flipping around the x-axis, positive (e.g., 1) means flipping around y-axis, and negative (e.g., -1) means flipping around both axes. See also the discussion below for the formulas:

The function flips the array in one of three different ways (row and column indices are 0-based):

dst(i,j) =  \forkthree{\texttt{src}(rows(\texttt{src})-i-1,j)}{if $\texttt{flipMode} = 0$}{\texttt{src}(i,cols(\texttt{src})-j-1)}{if $\texttt{flipMode} > 0$}{\texttt{src}(rows(\texttt{src})-i-1,cols(\texttt{src})-j-1)}{if $\texttt{flipMode} < 0$}

The example scenarios of function use are:

  • vertical flipping of the image (flipMode = 0) to switch between top-left and bottom-left image origin, which is a typical operation in video processing under Win32 systems.
  • horizontal flipping of the image with subsequent horizontal shift and absolute difference calculation to check for a vertical-axis symmetry (flipMode > 0)
  • simultaneous horizontal and vertical flipping of the image with subsequent shift and absolute difference calculation to check for a central symmetry (flipMode < 0)
  • reversing the order of 1d point arrays (flipMode > 0)

fromarray

Comments from the Wiki

fromarray(object, allowND = False) → CvMat

Create a CvMat from an object that supports the array interface.

Parameters:
  • object – Any object that supports the array interface
  • allowND – If true, will return a CvMatND

If the object supports the array interface , return a CvMat ( allowND = False ) or CvMatND ( allowND = True ).

If allowND = False , then the object’s array must be either 2D or 3D. If it is 2D, then the returned CvMat has a single channel. If it is 3D, then the returned CvMat will have N channels, where N is the last dimension of the array. In this case, N cannot be greater than OpenCV’s channel limit, CV_CN_MAX .

If allowND = True , then fromarray returns a single-channel CvMatND with the same shape as the original array.

For example, NumPy arrays support the array interface, so can be converted to OpenCV objects:

>>> import cv, numpy
>>> a = numpy.ones((480, 640))
>>> mat = cv.fromarray(a)
>>> print cv.GetDims(mat), cv.CV_MAT_CN(cv.GetElemType(mat))
(480, 640) 1
>>> a = numpy.ones((480, 640, 3))
>>> mat = cv.fromarray(a)
>>> print cv.GetDims(mat), cv.CV_MAT_CN(cv.GetElemType(mat))
(480, 640) 3
>>> a = numpy.ones((480, 640, 3))
>>> mat = cv.fromarray(a, allowND = True)
>>> print cv.GetDims(mat), cv.CV_MAT_CN(cv.GetElemType(mat))
(480, 640, 3) 1

GEMM

Comments from the Wiki

GEMM(src1, src2, alphs, src3, beta, dst, tABC=0) → None

Performs generalized matrix multiplication.

Parameters:
  • src1 (CvArr) – The first source array
  • src2 (CvArr) – The second source array
  • src3 (CvArr) – The third source array (shift). Can be NULL, if there is no shift.
  • dst (CvArr) – The destination array
  • tABC (int) –

    The operation flags that can be 0 or a combination of the following values

    • CV_GEMM_A_T transpose src1
    • CV_GEMM_B_T transpose src2
    • CV_GEMM_C_T transpose src3

    For example, CV_GEMM_A_T+CV_GEMM_C_T corresponds to

    \texttt{alpha}   \,   \texttt{src1}  ^T  \,   \texttt{src2}  +  \texttt{beta}   \,   \texttt{src3}  ^T

The function performs generalized matrix multiplication:

\texttt{dst} =  \texttt{alpha} \, op( \texttt{src1} )  \, op( \texttt{src2} ) +  \texttt{beta} \, op( \texttt{src3} )  \quad \text{where $op(X)$ is $X$ or $X^T$}

All the matrices should have the same data type and coordinated sizes. Real or complex floating-point matrices are supported.

Get1D

Comments from the Wiki

Get1D(arr, idx) → scalar

Return a specific array element.

Parameters:
  • arr (CvArr) – Input array
  • idx (int) – Zero-based element index

Return a specific array element. Array must have dimension 3.

Get2D

Comments from the Wiki

Get2D(arr, idx0, idx1) → scalar

Return a specific array element.

Parameters:
  • arr (CvArr) – Input array
  • idx0 (int) – Zero-based element row index
  • idx1 (int) – Zero-based element column index

Return a specific array element. Array must have dimension 2.

Get3D

Comments from the Wiki

Get3D(arr, idx0, idx1, idx2) → scalar

Return a specific array element.

Parameters:
  • arr (CvArr) – Input array
  • idx0 (int) – Zero-based element index
  • idx1 (int) – Zero-based element index
  • idx2 (int) – Zero-based element index

Return a specific array element. Array must have dimension 3.

GetND

Comments from the Wiki

GetND(arr, indices) → scalar

Return a specific array element.

Parameters:
  • arr (CvArr) – Input array
  • indices (sequence of int) – List of zero-based element indices

Return a specific array element. The length of array indices must be the same as the dimension of the array.

GetCol

Comments from the Wiki

GetCol(arr, col) → submat

Returns array column.

Parameters:
  • arr (CvArr) – Input array
  • col (int) – Zero-based index of the selected column
  • submat (CvMat) – resulting single-column array

The function GetCol returns a single column from the input array.

GetCols

Comments from the Wiki

GetCols(arr, startCol, endCol) → submat

Returns array column span.

Parameters:
  • arr (CvArr) – Input array
  • startCol (int) – Zero-based index of the starting column (inclusive) of the span
  • endCol (int) – Zero-based index of the ending column (exclusive) of the span
  • submat (CvMat) – resulting multi-column array

The function GetCols returns a column span from the input array.

GetDiag

Comments from the Wiki

GetDiag(arr, diag=0) → submat

Returns one of array diagonals.

Parameters:
  • arr (CvArr) – Input array
  • submat (CvMat) – Pointer to the resulting sub-array header
  • diag (int) – Array diagonal. Zero corresponds to the main diagonal, -1 corresponds to the diagonal above the main , 1 corresponds to the diagonal below the main, and so forth.

The function returns the header, corresponding to a specified diagonal of the input array.

GetDims

Comments from the Wiki

GetDims(arr) → list

Returns list of array dimensions

Parameters:
  • arr (CvArr) – Input array

The function returns a list of array dimensions. In the case of IplImage or CvMat it always returns a list of length 2.

GetElemType

Comments from the Wiki

GetElemType(arr) → int

Returns type of array elements.

Parameters:
  • arr (CvArr) – Input array

The function returns type of the array elements as described in CreateMat discussion: CV_8UC1 ... CV_64FC4 .

GetImage

Comments from the Wiki

GetImage(arr) → iplimage

Returns image header for arbitrary array.

Parameters:
  • arr (CvMat) – Input array

The function returns the image header for the input array that can be a matrix - CvMat , or an image - IplImage* . In the case of an image the function simply returns the input pointer. In the case of CvMat it initializes an imageHeader structure with the parameters of the input matrix. Note that if we transform IplImage to CvMat and then transform CvMat back to IplImage, we can get different headers if the ROI is set, and thus some IPL functions that calculate image stride from its width and align may fail on the resultant image.

GetImageCOI

Comments from the Wiki

GetImageCOI(image) → channel

Returns the index of the channel of interest.

Parameters:
  • image (IplImage) – A pointer to the image header

Returns the channel of interest of in an IplImage. Returned values correspond to the coi in SetImageCOI .

GetImageROI

Comments from the Wiki

GetImageROI(image) → CvRect

Returns the image ROI.

Parameters:
  • image (IplImage) – A pointer to the image header

If there is no ROI set, cvRect(0,0,image->width,image->height) is returned.

GetMat

Comments from the Wiki

GetMat(arr, allowND=0) → cvmat

Returns matrix header for arbitrary array.

Parameters:
  • arr (IplImage) – Input array
  • allowND (int) – If non-zero, the function accepts multi-dimensional dense arrays (CvMatND*) and returns 2D (if CvMatND has two dimensions) or 1D matrix (when CvMatND has 1 dimension or more than 2 dimensions). The array must be continuous.

The function returns a matrix header for the input array that can be a matrix -

CvMat , an image - IplImage or a multi-dimensional dense array - CvMatND (latter case is allowed only if allowND != 0 ) . In the case of matrix the function simply returns the input pointer. In the case of IplImage* or CvMatND it initializes the header structure with parameters of the current image ROI and returns the pointer to this temporary structure. Because COI is not supported by CvMat , it is returned separately.

The function provides an easy way to handle both types of arrays - IplImage and CvMat - using the same code. Reverse transform from CvMat to IplImage can be done using the GetImage function.

Input array must have underlying data allocated or attached, otherwise the function fails.

If the input array is IplImage with planar data layout and COI set, the function returns the pointer to the selected plane and COI = 0. It enables per-plane processing of multi-channel images with planar data layout using OpenCV functions.

GetOptimalDFTSize

Comments from the Wiki

GetOptimalDFTSize(size0) → int

Returns optimal DFT size for a given vector size.

Parameters:
  • size0 (int) – Vector size

The function returns the minimum number N that is greater than or equal to size0 , such that the DFT of a vector of size N can be computed fast. In the current implementation N=2^p \times 3^q \times 5^r , for some p , q , r .

The function returns a negative number if size0 is too large (very close to INT_MAX )

GetReal1D

Comments from the Wiki

GetReal1D(arr, idx0) → float

Return a specific element of single-channel 1D array.

Parameters:
  • arr (CvArr) – Input array. Must have a single channel.
  • idx0 (int) – The first zero-based component of the element index

Returns a specific element of a single-channel array. If the array has multiple channels, a runtime error is raised. Note that Get function can be used safely for both single-channel and multiple-channel arrays though they are a bit slower.

In the case of a sparse array the functions return 0 if the requested node does not exist (no new node is created by the functions).

GetReal2D

Comments from the Wiki

GetReal2D(arr, idx0, idx1) → float

Return a specific element of single-channel 2D array.

Parameters:
  • arr (CvArr) – Input array. Must have a single channel.
  • idx0 (int) – The first zero-based component of the element index
  • idx1 (int) – The second zero-based component of the element index

Returns a specific element of a single-channel array. If the array has multiple channels, a runtime error is raised. Note that Get function can be used safely for both single-channel and multiple-channel arrays though they are a bit slower.

In the case of a sparse array the functions return 0 if the requested node does not exist (no new node is created by the functions).

GetReal3D

Comments from the Wiki

GetReal3D(arr, idx0, idx1, idx2) → float

Return a specific element of single-channel array.

Parameters:
  • arr (CvArr) – Input array. Must have a single channel.
  • idx0 (int) – The first zero-based component of the element index
  • idx1 (int) – The second zero-based component of the element index
  • idx2 (int) – The third zero-based component of the element index

Returns a specific element of a single-channel array. If the array has multiple channels, a runtime error is raised. Note that Get function can be used safely for both single-channel and multiple-channel arrays though they are a bit slower.

In the case of a sparse array the functions return 0 if the requested node does not exist (no new node is created by the functions).

GetRealND

Comments from the Wiki

GetRealND(arr, idx) → float

Return a specific element of single-channel array.

Parameters:
  • arr (CvArr) – Input array. Must have a single channel.
  • idx (sequence of int) – Array of the element indices

Returns a specific element of a single-channel array. If the array has multiple channels, a runtime error is raised. Note that Get function can be used safely for both single-channel and multiple-channel arrays though they are a bit slower.

In the case of a sparse array the functions return 0 if the requested node does not exist (no new node is created by the functions).

GetRow

Comments from the Wiki

GetRow(arr, row) → submat

Returns array row.

Parameters:
  • arr (CvArr) – Input array
  • row (int) – Zero-based index of the selected row
  • submat (CvMat) – resulting single-row array

The function GetRow returns a single row from the input array.

GetRows

Comments from the Wiki

GetRows(arr, startRow, endRow, deltaRow=1) → submat

Returns array row span.

Parameters:
  • arr (CvArr) – Input array
  • startRow (int) – Zero-based index of the starting row (inclusive) of the span
  • endRow (int) – Zero-based index of the ending row (exclusive) of the span
  • deltaRow (int) – Index step in the row span.
  • submat (CvMat) – resulting multi-row array

The function GetRows returns a row span from the input array.

GetSize

Comments from the Wiki

GetSize(arr) → CvSize

Returns size of matrix or image ROI.

Parameters:
  • arr (CvArr) – array header

The function returns number of rows (CvSize::height) and number of columns (CvSize::width) of the input matrix or image. In the case of image the size of ROI is returned.

GetSubRect

Comments from the Wiki

GetSubRect(arr, rect) → cvmat

Returns matrix header corresponding to the rectangular sub-array of input image or matrix.

Parameters:
  • arr (CvArr) – Input array
  • rect (CvRect) – Zero-based coordinates of the rectangle of interest

The function returns header, corresponding to a specified rectangle of the input array. In other words, it allows the user to treat a rectangular part of input array as a stand-alone array. ROI is taken into account by the function so the sub-array of ROI is actually extracted.

InRange

Comments from the Wiki

InRange(src, lower, upper, dst) → None

Checks that array elements lie between the elements of two other arrays.

Parameters:
  • src (CvArr) – The first source array
  • lower (CvArr) – The inclusive lower boundary array
  • upper (CvArr) – The exclusive upper boundary array
  • dst (CvArr) – The destination array, must have 8u or 8s type

The function does the range check for every element of the input array:

\texttt{dst} (I)= \texttt{lower} (I)_0 <=  \texttt{src} (I)_0 <  \texttt{upper} (I)_0

For single-channel arrays,

\texttt{dst} (I)= \texttt{lower} (I)_0 <=  \texttt{src} (I)_0 <  \texttt{upper} (I)_0  \land \texttt{lower} (I)_1 <=  \texttt{src} (I)_1 <  \texttt{upper} (I)_1

For two-channel arrays and so forth,

dst(I) is set to 0xff (all 1 -bits) if src(I) is within the range and 0 otherwise. All the arrays must have the same type, except the destination, and the same size (or ROI size).

InRangeS

Comments from the Wiki

InRangeS(src, lower, upper, dst) → None

Checks that array elements lie between two scalars.

Parameters:
  • src (CvArr) – The first source array
  • lower (CvScalar) – The inclusive lower boundary
  • upper (CvScalar) – The exclusive upper boundary
  • dst (CvArr) – The destination array, must have 8u or 8s type

The function does the range check for every element of the input array:

\texttt{dst} (I)= \texttt{lower} _0 <=  \texttt{src} (I)_0 <  \texttt{upper} _0

For single-channel arrays,

\texttt{dst} (I)= \texttt{lower} _0 <=  \texttt{src} (I)_0 <  \texttt{upper} _0  \land \texttt{lower} _1 <=  \texttt{src} (I)_1 <  \texttt{upper} _1

For two-channel arrays nd so forth,

‘dst(I)’ is set to 0xff (all 1 -bits) if ‘src(I)’ is within the range and 0 otherwise. All the arrays must have the same size (or ROI size).

InvSqrt

Comments from the Wiki

InvSqrt(value) → float

Calculates the inverse square root.

Parameters:
  • value (float) – The input floating-point value

The function calculates the inverse square root of the argument, and normally it is faster than 1./sqrt(value) . If the argument is zero or negative, the result is not determined. Special values ( \pm \infty , NaN) are not handled.

Inv

Comments from the Wiki

Invert

Comments from the Wiki

Invert(src, dst, method=CV_LU) → double

Finds the inverse or pseudo-inverse of a matrix.

Parameters:
  • src – The source matrix
  • dst – The destination matrix
  • method

    Inversion method

    • CV_LU Gaussian elimination with optimal pivot element chosen
    • CV_SVD Singular value decomposition (SVD) method
    • CV_SVD_SYM SVD method for a symmetric positively-defined matrix

The function inverts matrix src1 and stores the result in src2 .

In the case of LU method, the function returns the src1 determinant (src1 must be square). If it is 0, the matrix is not inverted and src2 is filled with zeros.

In the case of SVD methods, the function returns the inversed condition of src1 (ratio of the smallest singular value to the largest singular value) and 0 if src1 is all zeros. The SVD methods calculate a pseudo-inverse matrix if src1 is singular.

IsInf

Comments from the Wiki

IsInf(value) → int

Determines if the argument is Infinity.

Parameters:
  • value (float) – The input floating-point value

The function returns 1 if the argument is \pm \infty (as defined by IEEE754 standard), 0 otherwise.

IsNaN

Comments from the Wiki

IsNaN(value) → int

Determines if the argument is Not A Number.

Parameters:
  • value (float) – The input floating-point value

The function returns 1 if the argument is Not A Number (as defined by IEEE754 standard), 0 otherwise.

LUT

Comments from the Wiki

LUT(src, dst, lut) → None

Performs a look-up table transform of an array.

Parameters:
  • src (CvArr) – Source array of 8-bit elements
  • dst (CvArr) – Destination array of a given depth and of the same number of channels as the source array
  • lut (CvArr) – Look-up table of 256 elements; should have the same depth as the destination array. In the case of multi-channel source and destination arrays, the table should either have a single-channel (in this case the same table is used for all channels) or the same number of channels as the source/destination array.

The function fills the destination array with values from the look-up table. Indices of the entries are taken from the source array. That is, the function processes each element of src as follows:

\texttt{dst} _i  \leftarrow \texttt{lut} _{ \texttt{src} _i + d}

where

d =  \fork{0}{if \texttt{src} has depth \texttt{CV\_8U}}{128}{if \texttt{src} has depth \texttt{CV\_8S}}

Log

Comments from the Wiki

Log(src, dst) → None

Calculates the natural logarithm of every array element’s absolute value.

Parameters:
  • src (CvArr) – The source array
  • dst (CvArr) – The destination array, it should have double type or the same type as the source

The function calculates the natural logarithm of the absolute value of every element of the input array:

\texttt{dst} [I] =  \fork{\log{|\texttt{src}(I)}}{if $\texttt{src}[I] \ne 0$ }{\texttt{C}}{otherwise}

Where C is a large negative number (about -700 in the current implementation).

Mahalanobis

Comments from the Wiki

Mahalonobis(vec1, vec2, mat) → None

Calculates the Mahalanobis distance between two vectors.

Parameters:
  • vec1 – The first 1D source vector
  • vec2 – The second 1D source vector
  • mat – The inverse covariance matrix

The function calculates and returns the weighted distance between two vectors:

d( \texttt{vec1} , \texttt{vec2} )= \sqrt{\sum_{i,j}{\texttt{icovar(i,j)}\cdot(\texttt{vec1}(I)-\texttt{vec2}(I))\cdot(\texttt{vec1(j)}-\texttt{vec2(j)})} }

The covariance matrix may be calculated using the CalcCovarMatrix function and further inverted using the Invert function (CV _ SVD method is the prefered one because the matrix might be singular).

Max

Comments from the Wiki

Max(src1, src2, dst) → None

Finds per-element maximum of two arrays.

Parameters:
  • src1 (CvArr) – The first source array
  • src2 (CvArr) – The second source array
  • dst (CvArr) – The destination array

The function calculates per-element maximum of two arrays:

\texttt{dst} (I)= \max ( \texttt{src1} (I),  \texttt{src2} (I))

All the arrays must have a single channel, the same data type and the same size (or ROI size).

MaxS

Comments from the Wiki

MaxS(src, value, dst) → None

Finds per-element maximum of array and scalar.

Parameters:
  • src (CvArr) – The first source array
  • value (float) – The scalar value
  • dst (CvArr) – The destination array

The function calculates per-element maximum of array and scalar:

\texttt{dst} (I)= \max ( \texttt{src} (I),  \texttt{value} )

All the arrays must have a single channel, the same data type and the same size (or ROI size).

Merge

Comments from the Wiki

Merge(src0, src1, src2, src3, dst) → None

Composes a multi-channel array from several single-channel arrays or inserts a single channel into the array.

Parameters:
  • src0 (CvArr) – Input channel 0
  • src1 (CvArr) – Input channel 1
  • src2 (CvArr) – Input channel 2
  • src3 (CvArr) – Input channel 3
  • dst (CvArr) – Destination array

The function is the opposite to Split . If the destination array has N channels then if the first N input channels are not NULL, they all are copied to the destination array; if only a single source channel of the first N is not NULL, this particular channel is copied into the destination array; otherwise an error is raised. The rest of the source channels (beyond the first N) must always be NULL. For IplImage Copy with COI set can be also used to insert a single channel into the image.

Min

Comments from the Wiki

Min(src1, src2, dst) → None

Finds per-element minimum of two arrays.

Parameters:
  • src1 (CvArr) – The first source array
  • src2 (CvArr) – The second source array
  • dst (CvArr) – The destination array

The function calculates per-element minimum of two arrays:

\texttt{dst} (I)= \min ( \texttt{src1} (I), \texttt{src2} (I))

All the arrays must have a single channel, the same data type and the same size (or ROI size).

MinMaxLoc

Comments from the Wiki

MinMaxLoc(arr, mask=NULL)-> (minVal, maxVal, minLoc, maxLoc)

Finds global minimum and maximum in array or subarray.

Parameters:
  • arr (CvArr) – The source array, single-channel or multi-channel with COI set
  • minVal (float) – Pointer to returned minimum value
  • maxVal (float) – Pointer to returned maximum value
  • minLoc (CvPoint) – Pointer to returned minimum location
  • maxLoc (CvPoint) – Pointer to returned maximum location
  • mask (CvArr) – The optional mask used to select a subarray

The function finds minimum and maximum element values and their positions. The extremums are searched across the whole array, selected ROI (in the case of IplImage ) or, if mask is not NULL , in the specified array region. If the array has more than one channel, it must be IplImage with COI set. In the case of multi-dimensional arrays, minLoc->x and maxLoc->x will contain raw (linear) positions of the extremums.

MinS

Comments from the Wiki

MinS(src, value, dst) → None

Finds per-element minimum of an array and a scalar.

Parameters:
  • src (CvArr) – The first source array
  • value (float) – The scalar value
  • dst (CvArr) – The destination array

The function calculates minimum of an array and a scalar:

\texttt{dst} (I)= \min ( \texttt{src} (I),  \texttt{value} )

All the arrays must have a single channel, the same data type and the same size (or ROI size).

Mirror

Synonym for Flip .

MixChannels

Comments from the Wiki

MixChannels(src, dst, fromTo) → None

Copies several channels from input arrays to certain channels of output arrays

Parameters:
  • src (cvarr_count) – Input arrays
  • dst (cvarr_count) – Destination arrays
  • fromTo (intpair) –

    The array of pairs of indices of the planes copied. Each pair fromTo[k]=(i,j) means that i-th plane from src is copied to the j-th plane in dst , where continuous plane numbering is used both in the input array list and the output array list. As a special case, when the fromTo[k][0] is negative, the corresponding output plane j

    is filled with zero.

The function is a generalized form of cvSplit and Merge and some forms of CvtColor . It can be used to change the order of the planes, add/remove alpha channel, extract or insert a single plane or multiple planes etc.

As an example, this code splits a 4-channel RGBA image into a 3-channel BGR (i.e. with R and B swapped) and separate alpha channel image:

rgba = cv.CreateMat(100, 100, cv.CV_8UC4)
bgr =  cv.CreateMat(100, 100, cv.CV_8UC3)
alpha = cv.CreateMat(100, 100, cv.CV_8UC1)
cv.Set(rgba, (1,2,3,4))
cv.MixChannels([rgba], [bgr, alpha], [
   (0, 2),    # rgba[0] -> bgr[2]
   (1, 1),    # rgba[1] -> bgr[1]
   (2, 0),    # rgba[2] -> bgr[0]
   (3, 3)     # rgba[3] -> alpha[0]
])

MulAddS

Synonym for ScaleAdd .

Mul

Comments from the Wiki

Mul(src1, src2, dst, scale) → None

Calculates the per-element product of two arrays.

Parameters:
  • src1 (CvArr) – The first source array
  • src2 (CvArr) – The second source array
  • dst (CvArr) – The destination array
  • scale (float) – Optional scale factor

The function calculates the per-element product of two arrays:

\texttt{dst} (I)= \texttt{scale} \cdot \texttt{src1} (I)  \cdot \texttt{src2} (I)

All the arrays must have the same type and the same size (or ROI size). For types that have limited range this operation is saturating.

MulSpectrums

Comments from the Wiki

MulSpectrums(src1, src2, dst, flags) → None

Performs per-element multiplication of two Fourier spectrums.

Parameters:
  • src1 (CvArr) – The first source array
  • src2 (CvArr) – The second source array
  • dst (CvArr) – The destination array of the same type and the same size as the source arrays
  • flags (int) –

    A combination of the following values;

    • CV_DXT_ROWS treats each row of the arrays as a separate spectrum (see DFT parameters description).
    • CV_DXT_MUL_CONJ conjugate the second source array before the multiplication.

The function performs per-element multiplication of the two CCS-packed or complex matrices that are results of a real or complex Fourier transform.

The function, together with DFT , may be used to calculate convolution of two arrays rapidly.

MulTransposed

Comments from the Wiki

MulTransposed(src, dst, order, delta=NULL, scale) → None

Calculates the product of an array and a transposed array.

Parameters:
  • src (CvArr) – The source matrix
  • dst (CvArr) – The destination matrix. Must be CV_32F or CV_64F .
  • order (int) – Order of multipliers
  • delta (CvArr) – An optional array, subtracted from src before multiplication
  • scale (float) – An optional scaling

The function calculates the product of src and its transposition:

\texttt{dst} = \texttt{scale} ( \texttt{src} - \texttt{delta} ) ( \texttt{src} - \texttt{delta} )^T

if \texttt{order}=0 , and

\texttt{dst} = \texttt{scale} ( \texttt{src} - \texttt{delta} )^T ( \texttt{src} - \texttt{delta} )

otherwise.

Norm

Comments from the Wiki

Norm(arr1, arr2, normType=CV_L2, mask=NULL) → double

Calculates absolute array norm, absolute difference norm, or relative difference norm.

Parameters:
  • arr1 (CvArr) – The first source image
  • arr2 (CvArr) – The second source image. If it is NULL, the absolute norm of arr1 is calculated, otherwise the absolute or relative norm of arr1 - arr2 is calculated.
  • normType (int) – Type of norm, see the discussion
  • mask (CvArr) – The optional operation mask

The function calculates the absolute norm of arr1 if arr2 is NULL:

norm =  \forkthree{||\texttt{arr1}||_C    = \max_I |\texttt{arr1}(I)|}{if $\texttt{normType} = \texttt{CV\_C}$}{||\texttt{arr1}||_{L1} = \sum_I |\texttt{arr1}(I)|}{if $\texttt{normType} = \texttt{CV\_L1}$}{||\texttt{arr1}||_{L2} = \sqrt{\sum_I \texttt{arr1}(I)^2}}{if $\texttt{normType} = \texttt{CV\_L2}$}

or the absolute difference norm if arr2 is not NULL:

norm =  \forkthree{||\texttt{arr1}-\texttt{arr2}||_C    = \max_I |\texttt{arr1}(I) - \texttt{arr2}(I)|}{if $\texttt{normType} = \texttt{CV\_C}$}{||\texttt{arr1}-\texttt{arr2}||_{L1} = \sum_I |\texttt{arr1}(I) - \texttt{arr2}(I)|}{if $\texttt{normType} = \texttt{CV\_L1}$}{||\texttt{arr1}-\texttt{arr2}||_{L2} = \sqrt{\sum_I (\texttt{arr1}(I) - \texttt{arr2}(I))^2}}{if $\texttt{normType} = \texttt{CV\_L2}$}

or the relative difference norm if arr2 is not NULL and (normType & CV_RELATIVE) != 0 :

norm =  \forkthree{\frac{||\texttt{arr1}-\texttt{arr2}||_C    }{||\texttt{arr2}||_C   }}{if $\texttt{normType} = \texttt{CV\_RELATIVE\_C}$}{\frac{||\texttt{arr1}-\texttt{arr2}||_{L1} }{||\texttt{arr2}||_{L1}}}{if $\texttt{normType} = \texttt{CV\_RELATIVE\_L1}$}{\frac{||\texttt{arr1}-\texttt{arr2}||_{L2} }{||\texttt{arr2}||_{L2}}}{if $\texttt{normType} = \texttt{CV\_RELATIVE\_L2}$}

The function returns the calculated norm. A multiple-channel array is treated as a single-channel, that is, the results for all channels are combined.

Not

Comments from the Wiki

Not(src, dst) → None

Performs per-element bit-wise inversion of array elements.

Parameters:
  • src (CvArr) – The source array
  • dst (CvArr) – The destination array

The function Not inverses every bit of every array element:

dst(I)=~src(I)

Or

Comments from the Wiki

Or(src1, src2, dst, mask=NULL) → None

Calculates per-element bit-wise disjunction of two arrays.

Parameters:
  • src1 (CvArr) – The first source array
  • src2 (CvArr) – The second source array
  • dst (CvArr) – The destination array
  • mask (CvArr) – Operation mask, 8-bit single channel array; specifies elements of the destination array to be changed

The function calculates per-element bit-wise disjunction of two arrays:

dst(I)=src1(I)|src2(I)

In the case of floating-point arrays their bit representations are used for the operation. All the arrays must have the same type, except the mask, and the same size.

OrS

Comments from the Wiki

OrS(src, value, dst, mask=NULL) → None

Calculates a per-element bit-wise disjunction of an array and a scalar.

Parameters:
  • src (CvArr) – The source array
  • value (CvScalar) – Scalar to use in the operation
  • dst (CvArr) – The destination array
  • mask (CvArr) – Operation mask, 8-bit single channel array; specifies elements of the destination array to be changed

The function OrS calculates per-element bit-wise disjunction of an array and a scalar:

dst(I)=src(I)|value if mask(I)!=0

Prior to the actual operation, the scalar is converted to the same type as that of the array(s). In the case of floating-point arrays their bit representations are used for the operation. All the arrays must have the same type, except the mask, and the same size.

PerspectiveTransform

Comments from the Wiki

PerspectiveTransform(src, dst, mat) → None

Performs perspective matrix transformation of a vector array.

Parameters:
  • src (CvArr) – The source three-channel floating-point array
  • dst (CvArr) – The destination three-channel floating-point array
  • mat (CvMat) – 3\times 3 or 4 \times 4 transformation matrix

The function transforms every element of src (by treating it as 2D or 3D vector) in the following way:

(x, y, z)  \rightarrow (x'/w, y'/w, z'/w)

where

(x', y', z', w') =  \texttt{mat} \cdot \begin{bmatrix} x & y & z & 1  \end{bmatrix}

and

w =  \fork{w'}{if $w' \ne 0$}{\infty}{otherwise}

PolarToCart

Comments from the Wiki

PolarToCart(magnitude, angle, x, y, angleInDegrees=0) → None

Calculates Cartesian coordinates of 2d vectors represented in polar form.

Parameters:
  • magnitude (CvArr) – The array of magnitudes. If it is NULL, the magnitudes are assumed to be all 1’s.
  • angle (CvArr) – The array of angles, whether in radians or degrees
  • x (CvArr) – The destination array of x-coordinates, may be set to NULL if it is not needed
  • y (CvArr) – The destination array of y-coordinates, mau be set to NULL if it is not needed
  • angleInDegrees (int) – The flag indicating whether the angles are measured in radians, which is default mode, or in degrees

The function calculates either the x-coodinate, y-coordinate or both of every vector magnitude(I)*exp(angle(I)*j), j=sqrt(-1) :

x(I)=magnitude(I)*cos(angle(I)),
y(I)=magnitude(I)*sin(angle(I))

Pow

Comments from the Wiki

Pow(src, dst, power) → None

Raises every array element to a power.

Parameters:
  • src (CvArr) – The source array
  • dst (CvArr) – The destination array, should be the same type as the source
  • power (float) – The exponent of power

The function raises every element of the input array to p :

\texttt{dst} [I] =  \fork{\texttt{src}(I)^p}{if \texttt{p} is integer}{|\texttt{src}(I)^p|}{otherwise}

That is, for a non-integer power exponent the absolute values of input array elements are used. However, it is possible to get true values for negative values using some extra operations, as the following example, computing the cube root of array elements, shows:

>>> import cv
>>> src = cv.CreateMat(1, 10, cv.CV_32FC1)
>>> mask = cv.CreateMat(src.rows, src.cols, cv.CV_8UC1)
>>> dst = cv.CreateMat(src.rows, src.cols, cv.CV_32FC1)
>>> cv.CmpS(src, 0, mask, cv.CV_CMP_LT)         # find negative elements
>>> cv.Pow(src, dst, 1. / 3)
>>> cv.SubRS(dst, cv.ScalarAll(0), dst, mask)   # negate the results of negative inputs

For some values of power , such as integer values, 0.5, and -0.5, specialized faster algorithms are used.

RNG

Comments from the Wiki

RNG(seed=-1LL) → CvRNG

Initializes a random number generator state.

Parameters:
  • seed (int64) – 64-bit value used to initiate a random sequence

The function initializes a random number generator and returns the state. The pointer to the state can be then passed to the RandInt , RandReal and RandArr functions. In the current implementation a multiply-with-carry generator is used.

RandArr

Comments from the Wiki

RandArr(rng, arr, distType, param1, param2) → None

Fills an array with random numbers and updates the RNG state.

Parameters:
  • rng (CvRNG) – RNG state initialized by RNG
  • arr (CvArr) – The destination array
  • distType (int) –

    Distribution type

    • CV_RAND_UNI uniform distribution
    • CV_RAND_NORMAL normal or Gaussian distribution
  • param1 (CvScalar) – The first parameter of the distribution. In the case of a uniform distribution it is the inclusive lower boundary of the random numbers range. In the case of a normal distribution it is the mean value of the random numbers.
  • param2 (CvScalar) – The second parameter of the distribution. In the case of a uniform distribution it is the exclusive upper boundary of the random numbers range. In the case of a normal distribution it is the standard deviation of the random numbers.

The function fills the destination array with uniformly or normally distributed random numbers.

RandInt

Comments from the Wiki

RandInt(rng) → unsigned

Returns a 32-bit unsigned integer and updates RNG.

Parameters:
  • rng (CvRNG) – RNG state initialized by RandInit and, optionally, customized by RandSetRange (though, the latter function does not affect the discussed function outcome)

The function returns a uniformly-distributed random 32-bit unsigned integer and updates the RNG state. It is similar to the rand() function from the C runtime library, but it always generates a 32-bit number whereas rand() returns a number in between 0 and RAND_MAX which is 2^{16} or 2^{32} , depending on the platform.

The function is useful for generating scalar random numbers, such as points, patch sizes, table indices, etc., where integer numbers of a certain range can be generated using a modulo operation and floating-point numbers can be generated by scaling from 0 to 1 or any other specific range.

RandReal

Comments from the Wiki

RandReal(rng) → double

Returns a floating-point random number and updates RNG.

Parameters:
  • rng (CvRNG) – RNG state initialized by RNG

The function returns a uniformly-distributed random floating-point number between 0 and 1 (1 is not included).

Reduce

Comments from the Wiki

Reduce(src, dst, dim=-1, op=CV_REDUCE_SUM) → None

Reduces a matrix to a vector.

Parameters:
  • src (CvArr) – The input matrix.
  • dst (CvArr) – The output single-row/single-column vector that accumulates somehow all the matrix rows/columns.
  • dim (int) – The dimension index along which the matrix is reduced. 0 means that the matrix is reduced to a single row, 1 means that the matrix is reduced to a single column and -1 means that the dimension is chosen automatically by analysing the dst size.
  • op (int) –

    The reduction operation. It can take of the following values:

    • CV_REDUCE_SUM The output is the sum of all of the matrix’s rows/columns.
    • CV_REDUCE_AVG The output is the mean vector of all of the matrix’s rows/columns.
    • CV_REDUCE_MAX The output is the maximum (column/row-wise) of all of the matrix’s rows/columns.
    • CV_REDUCE_MIN The output is the minimum (column/row-wise) of all of the matrix’s rows/columns.

The function reduces matrix to a vector by treating the matrix rows/columns as a set of 1D vectors and performing the specified operation on the vectors until a single row/column is obtained. For example, the function can be used to compute horizontal and vertical projections of an raster image. In the case of CV_REDUCE_SUM and CV_REDUCE_AVG the output may have a larger element bit-depth to preserve accuracy. And multi-channel arrays are also supported in these two reduction modes.

Repeat

Comments from the Wiki

Repeat(src, dst) → None

Fill the destination array with repeated copies of the source array.

Parameters:
  • src (CvArr) – Source array, image or matrix
  • dst (CvArr) – Destination array, image or matrix

The function fills the destination array with repeated copies of the source array:

dst(i,j)=src(i mod rows(src), j mod cols(src))

So the destination array may be as larger as well as smaller than the source array.

ResetImageROI

Comments from the Wiki

ResetImageROI(image) → None

Resets the image ROI to include the entire image and releases the ROI structure.

Parameters:
  • image (IplImage) – A pointer to the image header

This produces a similar result to the following

cv.SetImageROI(image, (0, 0, image.width, image.height))
cv.SetImageCOI(image, 0)

Reshape

Comments from the Wiki

Reshape(arr, newCn, newRows=0) → cvmat

Changes shape of matrix/image without copying data.

Parameters:
  • arr (CvArr) – Input array
  • newCn (int) – New number of channels. ‘newCn = 0’ means that the number of channels remains unchanged.
  • newRows (int) – New number of rows. ‘newRows = 0’ means that the number of rows remains unchanged unless it needs to be changed according to newCn value.

The function initializes the CvMat header so that it points to the same data as the original array but has a different shape - different number of channels, different number of rows, or both.

ReshapeMatND

Comments from the Wiki

ReshapeMatND(arr, newCn, newDims) → cvmat

Changes the shape of a multi-dimensional array without copying the data.

Parameters:
  • arr (CvMat) – Input array
  • newCn (int) – New number of channels. \texttt{newCn} = 0 means that the number of channels remains unchanged.
  • newDims (sequence of int) – List of new dimensions.

Returns a new CvMatND that shares the same data as arr but has different dimensions or number of channels. The only requirement is that the total length of the data is unchanged.

>>> import cv
>>> mat = cv.CreateMatND([24], cv.CV_32FC1)
>>> print cv.GetDims(cv.ReshapeMatND(mat, 0, [8, 3]))
(8, 3)
>>> m2 = cv.ReshapeMatND(mat, 4, [3, 2])
>>> print cv.GetDims(m2)
(3, 2)
>>> print m2.channels
4

Round

Comments from the Wiki

Round(value) → int

Converts a floating-point number to the nearest integer value.

Parameters:
  • value (float) – The input floating-point value

On some architectures this function is much faster than the standard cast operations. If the absolute value of the argument is greater than 2^{31} , the result is not determined. Special values ( \pm \infty , NaN) are not handled.

Floor

Comments from the Wiki

Floor(value) → int

Converts a floating-point number to the nearest integer value that is not larger than the argument.

Parameters:
  • value (float) – The input floating-point value

On some architectures this function is much faster than the standard cast operations. If the absolute value of the argument is greater than 2^{31} , the result is not determined. Special values ( \pm \infty , NaN) are not handled.

Ceil

Comments from the Wiki

Ceil(value) → int

Converts a floating-point number to the nearest integer value that is not smaller than the argument.

Parameters:
  • value (float) – The input floating-point value

On some architectures this function is much faster than the standard cast operations. If the absolute value of the argument is greater than 2^{31} , the result is not determined. Special values ( \pm \infty , NaN) are not handled.

ScaleAdd

Comments from the Wiki

ScaleAdd(src1, scale, src2, dst) → None

Calculates the sum of a scaled array and another array.

Parameters:
  • src1 (CvArr) – The first source array
  • scale (CvScalar) – Scale factor for the first array
  • src2 (CvArr) – The second source array
  • dst (CvArr) – The destination array

The function calculates the sum of a scaled array and another array:

\texttt{dst} (I)= \texttt{scale} \, \texttt{src1} (I) +  \texttt{src2} (I)

All array parameters should have the same type and the same size.

Set

Comments from the Wiki

Set(arr, value, mask=NULL) → None

Sets every element of an array to a given value.

Parameters:
  • arr (CvArr) – The destination array
  • value (CvScalar) – Fill value
  • mask (CvArr) – Operation mask, 8-bit single channel array; specifies elements of the destination array to be changed

The function copies the scalar value to every selected element of the destination array:

\texttt{arr} (I)= \texttt{value} \quad \text{if} \quad \texttt{mask} (I)  \ne 0

If array arr is of IplImage type, then is ROI used, but COI must not be set.

Set1D

Comments from the Wiki

Set1D(arr, idx, value) → None

Set a specific array element.

Parameters:
  • arr (CvArr) – Input array
  • idx (int) – Zero-based element index
  • value (CvScalar) – The value to assign to the element

Sets a specific array element. Array must have dimension 1.

Set2D

Comments from the Wiki

Set2D(arr, idx0, idx1, value) → None

Set a specific array element.

Parameters:
  • arr (CvArr) – Input array
  • idx0 (int) – Zero-based element row index
  • idx1 (int) – Zero-based element column index
  • value (CvScalar) – The value to assign to the element

Sets a specific array element. Array must have dimension 2.

Set3D

Comments from the Wiki

Set3D(arr, idx0, idx1, idx2, value) → None

Set a specific array element.

Parameters:
  • arr (CvArr) – Input array
  • idx0 (int) – Zero-based element index
  • idx1 (int) – Zero-based element index
  • idx2 (int) – Zero-based element index
  • value (CvScalar) – The value to assign to the element

Sets a specific array element. Array must have dimension 3.

SetND

Comments from the Wiki

SetND(arr, indices, value) → None

Set a specific array element.

Parameters:
  • arr (CvArr) – Input array
  • indices (sequence of int) – List of zero-based element indices
  • value (CvScalar) – The value to assign to the element

Sets a specific array element. The length of array indices must be the same as the dimension of the array.

SetData

Comments from the Wiki

SetData(arr, data, step) → None

Assigns user data to the array header.

Parameters:
  • arr (CvArr) – Array header
  • data (object) – User data
  • step (int) – Full row length in bytes

The function assigns user data to the array header. Header should be initialized before using cvCreate*Header , cvInit*Header or Mat (in the case of matrix) function.

SetIdentity

Comments from the Wiki

SetIdentity(mat, value=1) → None

Initializes a scaled identity matrix.

Parameters:
  • mat (CvArr) – The matrix to initialize (not necesserily square)
  • value (CvScalar) – The value to assign to the diagonal elements

The function initializes a scaled identity matrix:

\texttt{arr} (i,j)= \fork{\texttt{value}}{ if $i=j$}{0}{otherwise}

SetImageCOI

Comments from the Wiki

SetImageCOI(image, coi) → None

Sets the channel of interest in an IplImage.

Parameters:
  • image (IplImage) – A pointer to the image header
  • coi (int) – The channel of interest. 0 - all channels are selected, 1 - first channel is selected, etc. Note that the channel indices become 1-based.

If the ROI is set to NULL and the coi is not 0, the ROI is allocated. Most OpenCV functions do not support the COI setting, so to process an individual image/matrix channel one may copy (via Copy or Split ) the channel to a separate image/matrix, process it and then copy the result back (via Copy or Merge ) if needed.

SetImageROI

Comments from the Wiki

SetImageROI(image, rect) → None

Sets an image Region Of Interest (ROI) for a given rectangle.

Parameters:
  • image (IplImage) – A pointer to the image header
  • rect (CvRect) – The ROI rectangle

If the original image ROI was NULL and the rect is not the whole image, the ROI structure is allocated.

Most OpenCV functions support the use of ROI and treat the image rectangle as a separate image. For example, all of the pixel coordinates are counted from the top-left (or bottom-left) corner of the ROI, not the original image.

SetReal1D

Comments from the Wiki

SetReal1D(arr, idx, value) → None

Set a specific array element.

Parameters:
  • arr (CvArr) – Input array
  • idx (int) – Zero-based element index
  • value (float) – The value to assign to the element

Sets a specific array element. Array must have dimension 1.

SetReal2D

Comments from the Wiki

SetReal2D(arr, idx0, idx1, value) → None

Set a specific array element.

Parameters:
  • arr (CvArr) – Input array
  • idx0 (int) – Zero-based element row index
  • idx1 (int) – Zero-based element column index
  • value (float) – The value to assign to the element

Sets a specific array element. Array must have dimension 2.

SetReal3D

Comments from the Wiki

SetReal3D(arr, idx0, idx1, idx2, value) → None

Set a specific array element.

Parameters:
  • arr (CvArr) – Input array
  • idx0 (int) – Zero-based element index
  • idx1 (int) – Zero-based element index
  • idx2 (int) – Zero-based element index
  • value (float) – The value to assign to the element

Sets a specific array element. Array must have dimension 3.

SetRealND

Comments from the Wiki

SetRealND(arr, indices, value) → None

Set a specific array element.

Parameters:
  • arr (CvArr) – Input array
  • indices (sequence of int) – List of zero-based element indices
  • value (float) – The value to assign to the element

Sets a specific array element. The length of array indices must be the same as the dimension of the array.

SetZero

Comments from the Wiki

SetZero(arr) → None

Clears the array.

Parameters:
  • arr (CvArr) – Array to be cleared

The function clears the array. In the case of dense arrays (CvMat, CvMatND or IplImage), cvZero(array) is equivalent to cvSet(array,cvScalarAll(0),0). In the case of sparse arrays all the elements are removed.

Solve

Comments from the Wiki

Solve(A, B, X, method=CV_LU) → None

Solves a linear system or least-squares problem.

Parameters:
  • A (CvArr) – The source matrix
  • B (CvArr) – The right-hand part of the linear system
  • X (CvArr) – The output solution
  • method (int) –

    The solution (matrix inversion) method

    • CV_LU Gaussian elimination with optimal pivot element chosen
    • CV_SVD Singular value decomposition (SVD) method
    • CV_SVD_SYM SVD method for a symmetric positively-defined matrix.

The function solves a linear system or least-squares problem (the latter is possible with SVD methods):

\texttt{dst} = argmin_X|| \texttt{src1} \, \texttt{X} -  \texttt{src2} ||

If CV_LU method is used, the function returns 1 if src1 is non-singular and 0 otherwise; in the latter case dst is not valid.

SolveCubic

Comments from the Wiki

SolveCubic(coeffs, roots) → None

Finds the real roots of a cubic equation.

Parameters:
  • coeffs (CvMat) – The equation coefficients, an array of 3 or 4 elements
  • roots (CvMat) – The output array of real roots which should have 3 elements

The function finds the real roots of a cubic equation:

If coeffs is a 4-element vector:

\texttt{coeffs} [0] x^3 +  \texttt{coeffs} [1] x^2 +  \texttt{coeffs} [2] x +  \texttt{coeffs} [3] = 0

or if coeffs is 3-element vector:

x^3 +  \texttt{coeffs} [0] x^2 +  \texttt{coeffs} [1] x +  \texttt{coeffs} [2] = 0

The function returns the number of real roots found. The roots are stored to root array, which is padded with zeros if there is only one root.

Split

Comments from the Wiki

Split(src, dst0, dst1, dst2, dst3) → None

Divides multi-channel array into several single-channel arrays or extracts a single channel from the array.

Parameters:
  • src (CvArr) – Source array
  • dst0 (CvArr) – Destination channel 0
  • dst1 (CvArr) – Destination channel 1
  • dst2 (CvArr) – Destination channel 2
  • dst3 (CvArr) – Destination channel 3

The function divides a multi-channel array into separate single-channel arrays. Two modes are available for the operation. If the source array has N channels then if the first N destination channels are not NULL, they all are extracted from the source array; if only a single destination channel of the first N is not NULL, this particular channel is extracted; otherwise an error is raised. The rest of the destination channels (beyond the first N) must always be NULL. For IplImage Copy with COI set can be also used to extract a single channel from the image.

Sqrt

Comments from the Wiki

Sqrt(value) → float

Calculates the square root.

Parameters:
  • value (float) – The input floating-point value

The function calculates the square root of the argument. If the argument is negative, the result is not determined.

Sub

Comments from the Wiki

Sub(src1, src2, dst, mask=NULL) → None

Computes the per-element difference between two arrays.

Parameters:
  • src1 (CvArr) – The first source array
  • src2 (CvArr) – The second source array
  • dst (CvArr) – The destination array
  • mask (CvArr) – Operation mask, 8-bit single channel array; specifies elements of the destination array to be changed

The function subtracts one array from another one:

dst(I)=src1(I)-src2(I) if mask(I)!=0

All the arrays must have the same type, except the mask, and the same size (or ROI size). For types that have limited range this operation is saturating.

SubRS

Comments from the Wiki

SubRS(src, value, dst, mask=NULL) → None

Computes the difference between a scalar and an array.

Parameters:
  • src (CvArr) – The first source array
  • value (CvScalar) – Scalar to subtract from
  • dst (CvArr) – The destination array
  • mask (CvArr) – Operation mask, 8-bit single channel array; specifies elements of the destination array to be changed

The function subtracts every element of source array from a scalar:

dst(I)=value-src(I) if mask(I)!=0

All the arrays must have the same type, except the mask, and the same size (or ROI size). For types that have limited range this operation is saturating.

SubS

Comments from the Wiki

SubS(src, value, dst, mask=NULL) → None

Computes the difference between an array and a scalar.

Parameters:
  • src (CvArr) – The source array
  • value (CvScalar) – Subtracted scalar
  • dst (CvArr) – The destination array
  • mask (CvArr) – Operation mask, 8-bit single channel array; specifies elements of the destination array to be changed

The function subtracts a scalar from every element of the source array:

dst(I)=src(I)-value if mask(I)!=0

All the arrays must have the same type, except the mask, and the same size (or ROI size). For types that have limited range this operation is saturating.

Sum

Comments from the Wiki

Sum(arr) → CvScalar

Adds up array elements.

Parameters:
  • arr (CvArr) – The array

The function calculates the sum S of array elements, independently for each channel:

\sum _I  \texttt{arr} (I)_c

If the array is IplImage and COI is set, the function processes the selected channel only and stores the sum to the first scalar component.

SVBkSb

Comments from the Wiki

SVBkSb(W, U, V, B, X, flags) → None

Performs singular value back substitution.

Parameters:
  • W (CvArr) – Matrix or vector of singular values
  • U (CvArr) – Left orthogonal matrix (tranposed, perhaps)
  • V (CvArr) – Right orthogonal matrix (tranposed, perhaps)
  • B (CvArr) – The matrix to multiply the pseudo-inverse of the original matrix A by. This is an optional parameter. If it is omitted then it is assumed to be an identity matrix of an appropriate size (so that X will be the reconstructed pseudo-inverse of A ).
  • X (CvArr) – The destination matrix: result of back substitution
  • flags (int) – Operation flags, should match exactly to the flags passed to SVD

The function calculates back substitution for decomposed matrix A (see SVD description) and matrix B :

\texttt{X} =  \texttt{V} \texttt{W} ^{-1}  \texttt{U} ^T  \texttt{B}

where

W^{-1}_{(i,i)}= \fork{1/W_{(i,i)}}{if $W_{(i,i)} > \epsilon \sum_i{W_{(i,i)}}$ }{0}{otherwise}

and \epsilon is a small number that depends on the matrix data type.

This function together with SVD is used inside Invert and Solve , and the possible reason to use these (svd and bksb) “low-level” function, is to avoid allocation of temporary matrices inside the high-level counterparts (inv and solve).

SVD

Comments from the Wiki

SVD(A, W, U = None, V = None, flags=0) → None

Performs singular value decomposition of a real floating-point matrix.

Parameters:
  • A (CvArr) – Source \texttt{M} \times \texttt{N} matrix
  • W (CvArr) – Resulting singular value diagonal matrix ( \texttt{M} \times \texttt{N} or \min(\texttt{M}, \texttt{N})  \times \min(\texttt{M}, \texttt{N}) ) or \min(\texttt{M},\texttt{N}) \times 1 vector of the singular values
  • U (CvArr) – Optional left orthogonal matrix, \texttt{M} \times \min(\texttt{M}, \texttt{N}) (when CV_SVD_U_T is not set), or \min(\texttt{M},\texttt{N}) \times \texttt{M} (when CV_SVD_U_T is set), or \texttt{M} \times \texttt{M} (regardless of CV_SVD_U_T flag).
  • V (CvArr) – Optional right orthogonal matrix, \texttt{N} \times \min(\texttt{M}, \texttt{N}) (when CV_SVD_V_T is not set), or \min(\texttt{M},\texttt{N}) \times \texttt{N} (when CV_SVD_V_T is set), or \texttt{N} \times \texttt{N} (regardless of CV_SVD_V_T flag).
  • flags (int) –

    Operation flags; can be 0 or a combination of the following values:

    • CV_SVD_MODIFY_A enables modification of matrix A during the operation. It speeds up the processing.
    • CV_SVD_U_T means that the transposed matrix U is returned. Specifying the flag speeds up the processing.
    • CV_SVD_V_T means that the transposed matrix V is returned. Specifying the flag speeds up the processing.

The function decomposes matrix A into the product of a diagonal matrix and two

orthogonal matrices:

A=U  \, W  \, V^T

where W is a diagonal matrix of singular values that can be coded as a 1D vector of singular values and U and V . All the singular values are non-negative and sorted (together with U and V columns) in descending order.

An SVD algorithm is numerically robust and its typical applications include:

  • accurate eigenvalue problem solution when matrix A is a square, symmetric, and positively defined matrix, for example, when

    it is a covariance matrix.

    W in this case will be a vector/matrix

    of the eigenvalues, and

    U = V will be a matrix of the eigenvectors.

  • accurate solution of a poor-conditioned linear system.

  • least-squares solution of an overdetermined linear system. This and the preceeding is done by using the Solve function with the CV_SVD method.

  • accurate calculation of different matrix characteristics such as the matrix rank (the number of non-zero singular values), condition number (ratio of the largest singular value to the smallest one), and determinant (absolute value of the determinant is equal to the product of singular values).

Trace

Comments from the Wiki

Trace(mat) → CvScalar

Returns the trace of a matrix.

Parameters:
  • mat (CvArr) – The source matrix

The function returns the sum of the diagonal elements of the matrix src1 .

tr( \texttt{mat} ) =  \sum _i  \texttt{mat} (i,i)

Transform

Comments from the Wiki

Transform(src, dst, transmat, shiftvec=NULL) → None

Performs matrix transformation of every array element.

Parameters:
  • src (CvArr) – The first source array
  • dst (CvArr) – The destination array
  • transmat (CvMat) – Transformation matrix
  • shiftvec (CvMat) – Optional shift vector

The function performs matrix transformation of every element of array src and stores the results in dst :

dst(I) = transmat  \cdot src(I) + shiftvec

That is, every element of an N -channel array src is considered as an N -element vector which is transformed using a \texttt{M} \times \texttt{N} matrix transmat and shift vector shiftvec into an element of M -channel array dst . There is an option to embedd shiftvec into transmat . In this case transmat should be a \texttt{M}
\times (N+1) matrix and the rightmost column is treated as the shift vector.

Both source and destination arrays should have the same depth and the same size or selected ROI size. transmat and shiftvec should be real floating-point matrices.

The function may be used for geometrical transformation of n dimensional point set, arbitrary linear color space transformation, shuffling the channels and so forth.

Transpose

Comments from the Wiki

Transpose(src, dst) → None

Transposes a matrix.

Parameters:
  • src (CvArr) – The source matrix
  • dst (CvArr) – The destination matrix

The function transposes matrix src1 :

\texttt{dst} (i,j) =  \texttt{src} (j,i)

Note that no complex conjugation is done in the case of a complex matrix. Conjugation should be done separately: look at the sample code in XorS for an example.

Xor

Comments from the Wiki

Xor(src1, src2, dst, mask=NULL) → None

Performs per-element bit-wise “exclusive or” operation on two arrays.

Parameters:
  • src1 (CvArr) – The first source array
  • src2 (CvArr) – The second source array
  • dst (CvArr) – The destination array
  • mask (CvArr) – Operation mask, 8-bit single channel array; specifies elements of the destination array to be changed

The function calculates per-element bit-wise logical conjunction of two arrays:

dst(I)=src1(I)^src2(I) if mask(I)!=0

In the case of floating-point arrays their bit representations are used for the operation. All the arrays must have the same type, except the mask, and the same size.

XorS

Comments from the Wiki

XorS(src, value, dst, mask=NULL) → None

Performs per-element bit-wise “exclusive or” operation on an array and a scalar.

Parameters:
  • src (CvArr) – The source array
  • value (CvScalar) – Scalar to use in the operation
  • dst (CvArr) – The destination array
  • mask (CvArr) – Operation mask, 8-bit single channel array; specifies elements of the destination array to be changed

The function XorS calculates per-element bit-wise conjunction of an array and a scalar:

dst(I)=src(I)^value if mask(I)!=0

Prior to the actual operation, the scalar is converted to the same type as that of the array(s). In the case of floating-point arrays their bit representations are used for the operation. All the arrays must have the same type, except the mask, and the same size

mGet

Comments from the Wiki

mGet(mat, row, col) → double

Returns the particular element of single-channel floating-point matrix.

Parameters:
  • mat (CvMat) – Input matrix
  • row (int) – The zero-based index of row
  • col (int) – The zero-based index of column

The function is a fast replacement for GetReal2D in the case of single-channel floating-point matrices. It is faster because it is inline, it does fewer checks for array type and array element type, and it checks for the row and column ranges only in debug mode.

mSet

Comments from the Wiki

mSet(mat, row, col, value) → None

Returns a specific element of a single-channel floating-point matrix.

Parameters:
  • mat (CvMat) – The matrix
  • row (int) – The zero-based index of row
  • col (int) – The zero-based index of column
  • value (float) – The new value of the matrix element

The function is a fast replacement for SetReal2D in the case of single-channel floating-point matrices. It is faster because it is inline, it does fewer checks for array type and array element type, and it checks for the row and column ranges only in debug mode.
